1 Functions

The HBE Data Processing (AIH-BDP) AIM:

Receives AIH Data From internal Secure Storage.
Processing Request From processes inside the HBE or Third-Party Users.
Confirmation Response Response to confirmation request.
ARA Data Anomaly and Risk Alerting Data.
Licence ID ID of Licence provided by Blockchain.
Produces AIH Data To internal Secure Storage or requesting Third-Party Users.
Confirmation Request Request for Confirmation.
Licence Request Request for Licence related to newly processed AIH Data .

2 Reference Model

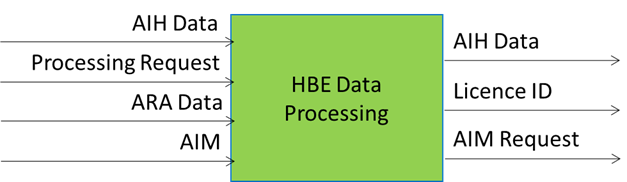

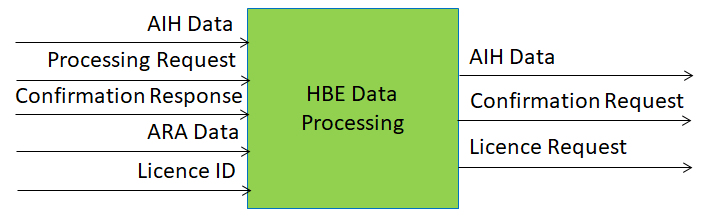

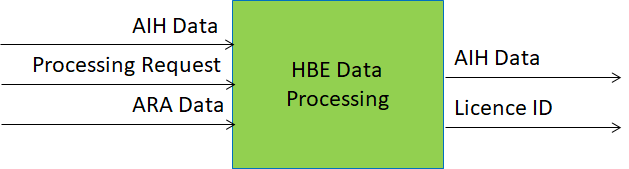

The HBE Data Processing (AIH-BDP) AIM Reference Model is depicted in Figure 1.

Figure 1 – The HBE Data Processing (AIH-BDP) AIM Reference Model

3 Input/Output Data

Table 1 specifies the Input and Output Data of the HBE Data Processing (AIH-BDP) AIM. Links are to the Data Type specifications.

Table 1 – I/O Data of the HBE Data Processing (AIH-BDP) AIM

Input Description
AIH Data From internal Secure Storage.
Processing Request From processes inside the HBE or Third-Party Users.
Confirmation Response Blockchain’s response that AIH Data may/may not be used.
ARA Data Anomaly and Risk Alerting Data
Licence ID ID of Licence for newly processed AIH Data.
Output Description
AIH Data To internal Secure Storage or requesting Third-Party Users.
Confirmation Request Request to Blockchain to use AIH Data.
Licence Request Request for Licence related to newly processed AIH Data .

4 SubAIMs

No SubAIMs

5 JSON Metadata

https://schemas.mpai.community/AIH1/V1.0/AIMs/HBEDataProcessing.json

6 Profiles

No Profiles

7 Reference Software

Under development.

8 Conformance Testing

Table 2 provides the Conformance Testing Method for the HBE Data Processing (AIH-BDP)  AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for HBE Data Processing (AIH-BDP) AIM

Receives AIH Data Shall validate against AIH Data schema
Processing Request Shall validate against Processing Request schema
Confirmation Response Shall validate against Confirmation Response schema
ARA Data Shall validate against ARA Data schema
Licence ID Shall be a string
Produces AIH Data Shall validate against  AIH Data schema
Confirmation Request Shall be a string
Licence Request Shall validate against Licence Request Schema.

9 Performance Assessment
