1     Functions

The Path Selection Planning (CAV-PSP) AIM:

Receives Full Environment Descriptors From Full Environment Description.
AMS Data From AMS Memory
Route From Route Selection Planning.
Request From Motion Selection Planning.
Produces Path To Motion Selection Planning.
Request To Route Selection Planning

2      Reference Architecture

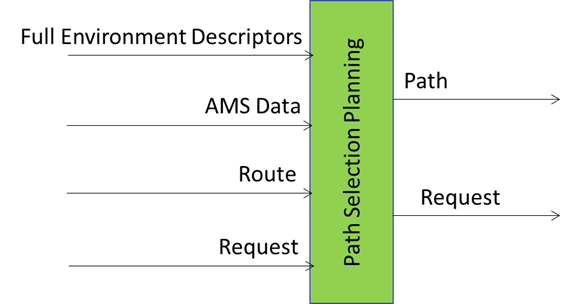

Figure 1 depicts the Reference Architecture of the Path Selection Planning AIM.

Figure 1 – The Path Selection Planning AIM

3      I/O Data

Table 1 specifies the Input and Output Data of the Path Selection Planning AIM.

Table 1 – I/O Data of the Path Selection Planning AIM

Input Description
Full Environment Descriptors Provided by the CAV-FED.
AMS Data CAV Data from AMS Memory.
Route From Route Selection Planning.
Request Request for a new Route.
Output Description
Path Motion passed to the Path Selection Planning AIM.
Request Request for a new Path.

4      SubAIMs

No SubAIMs.

5     JSON Metadata

https://schemas.mpai.community/CAV2/V1.0/AIMs/PathSelectionPlanning.json

6 Profiles

No Profiles
