1 Functions

1        Functions

The No-Inference Robustness (NNW-NIR) receives watermarked parameters, the payload and provides both the retrieved payload and the number of incorrect bits (Count error).

2        Reference Model

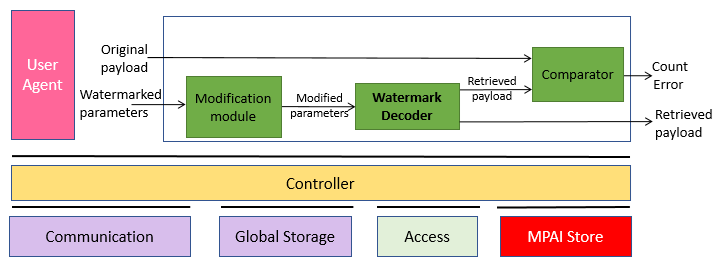

Figure 1 specifies the No-Inference Robustness (NNW-NIR) Reference Model including the input/output data, the AIMs, and the data exchanged between and among the AIMs.

Figure 1 – Reference Model of No-Inference Robustness (NNW-NIR))

The operation of No-Inference Robustness (NNW-NIR) develops in the following way:

  1. A user provides
    1. The Original payload
    2. The Watermarked parameters
  2. The machine provides
    1. The Count Error
    2. The Retrieved Payload

3         I/O Data

The input and output data of the No-Inference Robustness (NNW-NIR) Use Case are:

Table 1 – I/O Data of No-Inference Robustness (NNW-NIR)

Input Descriptions
Original Payload The information inserted.
Watermarked parameters The parameters of a watermarked AIM.
Output Descriptions
Count error The number of incorrect bits in the retrieved payload.
Retrieved payload The output of the decoding procedure of the watermarking method.

4        Functions of AI Modules

Table 2 provides the functions of the No-Inference Robustness (NNW-NIR) Use Case.

Table 2 – Functions of AI Modules of No-Inference Robustness (NNW-NIR)

AIM Function
Modification module Modifies the parameters of the watermarked AIM.
NIR Watermark Decoder Retrieves the payload using the watermarking method.
Comparator Compares the retrieved payload to the original payload.

5         I/O Data of AI Modules

The AI Modules of No-Inference Robustness (NNW-NIR) are given in Table 3.

Table 3 – AI Modules of No-Inference Robustness (NNW-NIR)

AIM Receives Produces
Modification module Watermarked parameters Modified parameters
NIR Watermark Decoder Modified parameters Retrieved payload
Comparator 1.     Original payload

2.     Retrieved payload

 Unwatermarked inference

6        AIW, AIMs, and JSON Metadata

Table 4 provides the links to the AIW and AIM specifications and to the JSON syntaxes. AIMs/1 indicates that the column contains Composite AIMs and AIMs indicates that the column contains their Basic AIMs.

Table 4 – AIW, AIMs, and JSON Metadata

AIW AIM Name JSON
NNW-NIR No-Inference Robustness X
NNW-CMP Comparator X
NNW-MFM Modification Module X
NNW-NWD NIR Watermark Decoder X

7        Reference Software

7.1       Disclaimers

  1. This NNW-NIR Reference Software Implementation is released with the BSD-3-Clause licence.
  2. The purpose of this Reference Software is to demonstrate a working Implementation of NNW-NIR, not to provide a ready-to-use product.
  3. MPAI disclaims the suitability of the Software for any other purposes and does not guarantee that it is secure.
  4. Use of this Reference Software may require acceptance of licences from the respective repositories. Users shall verify that they have the right to use any third-party software required by this Reference Software.

7.2        Guide to the NNW-NIR code

Use of this AI Workflow is for developers who are familiar with Python and PyTorch libraries,

The robustness.py code allow a User to evaluate the robustness of a watermarking method on the image classification task:

  1. The watermarking method is implemented as a Python Class
  2. The attack is performed using mainAttack.py

The NNW-NIR Reference Software is found at the gitlab site. It contains:

  1. The python code implementing the AIW.
  2. The required libraries are: pytorch, tqdm

8        Conformance Testing

9        Performance Assessment
