1. Functions

The Environment Description (XRV-END) AIM:

  1. Receives the RE Data In and the VE Data In, Objects whose Qualifier states their format, and, using Script-Venue Associations, identifies and separates Performance elements, Participant elements and Operator elements which are relevant to subsequent processing:
    1. Performance elements include Position, Orientation, and behaviour of individual Performers and objects in the scene.
    2. Participant elements include Position, Orientation, and behaviour of individual Participants and their group behaviour.
    3. Operator elements include actions performed by Operators on Lighting, Audio, Video, and Show Control Consoles.
  2. Packages the elements into Performance, Participant, and Operator Descriptors for both the Real and Virtual Environments, and a combination of all Descriptors called Show Descriptors.
  3. Passes the Descriptors to downstream AIMs.

2. Reference Model

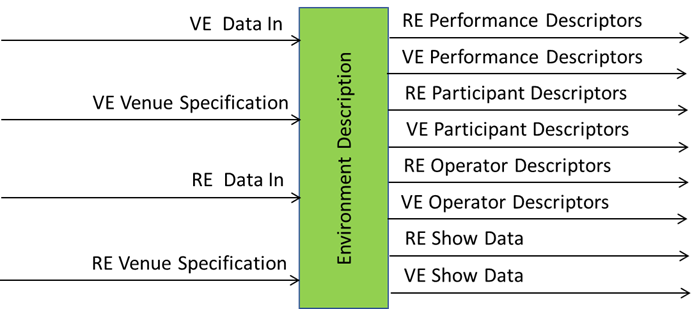

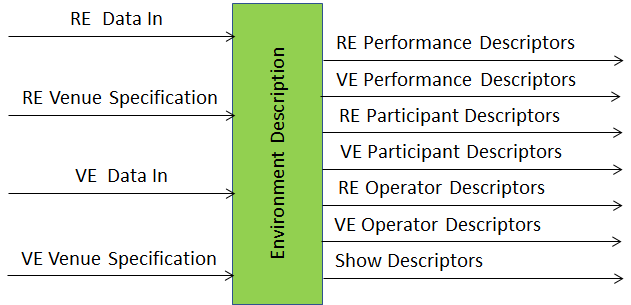

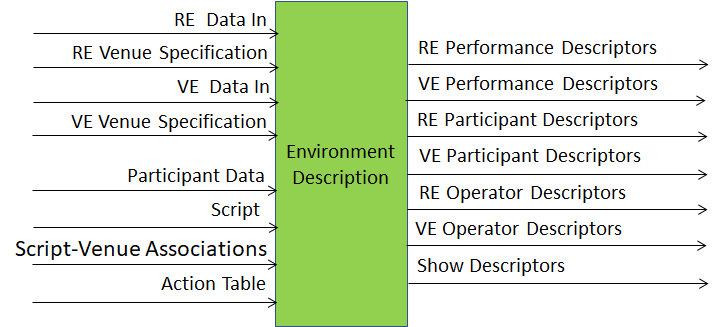

Figure 1 depicts the Reference Model of the Environment Description (XRV-END) AIM.

Figure 1 – Environment Description (XRV-END) AIM Reference Model.

3. I/O Data

Table 1 specifies the Input and Output Data of the Environment Description (XRV-LTP) AIM.

Input Description Port Number
VE Data In (optional) Data entering the XRV-LTP instance from a Virtual Environment. Optional: a performance may have no Virtual Environment. 1
VE Venue Specification Specification of the VE Venue hosting the performance. 1
RE Data In (optional) Data entering the XRV-LTP instance from a Real Environment. Optional: a performance may have no Real Environment. 1
RE Venue Specification Specification of the RE Venue hosting the performance. 1
Participant Data (optional) Non-identifying information about each Participant loaded into the system and modified in real time. Optional: the User Agent may have no Participant Data, as for an audience with no history. 1
Script A machine-readable functional description of the entire show performance including actions to be performed in the Real and Virtual Environment based on the Performance, Operator, and Participant behaviours. 1
Action Table Commands required to achieve a desired Action in the Real and Virtual Environments per the Script. 1
Script-Venue Associations Metadata that associates measurable elements of the Script (e.g., characters, objects, participants, operator consoles) with data sources and sinks specific to the Real and Virtual Environments, as defined by the Qualifiers in the Venue Specifications. 1
Output Data Description Port Number
RE Performance Descriptors Descriptors of Real Performers and Real Objects (stage, set pieces, and all associated objects). 1
VE Performance Descriptors Descriptors of Virtual Performers and Virtual Objects (the entire environment, including virtual stages, set pieces, and all associated objects). 1
RE Participant Descriptors Descriptors of Real Participants, Real Participant interaction zones (seating, pathways, rooms, etc.), and Real Participant responses. 1
VE Participant Descriptors Descriptors of Virtual Participants, Virtual Participant interaction zones (seating, pathways, rooms, etc.), and Virtual Participant responses. 1
RE Operator Descriptors Descriptors of Real Operator actions on the consoles. 1
VE Operator Descriptors Descriptors of Virtual Operator actions on the consoles. 1
Show Descriptors The collection of all RE and VE Descriptors as required by RE and VE Experience Generation AIMs. 1

4. SubAIMs

No SubAIMs.

5. JSON Metadata

https://schemas.mpai.community/XRV1/V1.0/AIMs/EnvironmentDescription.json

6 Profiles

No Profiles.

7. Reference Software

Under development.

8. Conformance Testing

Table 2 provides the Conformance Testing Method for the Environment Description (XRV-END) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the Environment Description (XRV-END) AIM

Receives VE Data In Shall validate against VE Data In schema.
VE Venue Specification Shall validate against VE Venue Specification schema.
RE Data In Shall validate against RE Data In schema.
RE Venue Specification Shall validate against RE Venue Specification schema.
Participant Data Shall validate against Participant Data schema.
Script Shall validate against Script schema.
Action Table Shall validate against Action Table schema.
Script-Venue Associations Shall validate against Script-Venue Associations schema.
Produces RE Performance Descriptors Shall validate against RE Performance Descriptors schema.
VE Performance Descriptors Shall validate against VE Performance Descriptors schema.
RE Participant Descriptors Shall validate against RE Participant Descriptors schema.
VE Participant Descriptors Shall validate against VE Participant Descriptors schema.
RE Operator Descriptors Shall validate against RE Operator Descriptors schema.
VE Operator Descriptors Shall validate against VE Operator Descriptors schema.
Show Descriptors Shall validate against Show Descriptors schema.

9. Performance Assessment

Not part of this specification.
