MPAI-OSD V1.5 AIMs - Audio-Visual Scene Description

Function
Ref. Model
I/O Data
SubAIMs
JSON MData
Profiles
Ref. Software
Conformance
Performance

1 Functions

The Audio-Visual Scene Description (OSD‑MSD) Composite AIM receives Audio-Visual Objects, the Descriptors of the Scene the Objects belong to, and their Space-Time information as inputs and produces the Descriptors of a Scene composed of Audio-Visual Objects and Scenes. The OSD‑MSD AIM may also receive an Alert conveying information on potential anomalies in the input Audio-Visual Objects.

Receives	Space-Time	Of output Audio-Visual Scene Descriptors.
	Speech Objects	Individual Speech Objects.
	Audio Objects	Individual Audio Objects.
	LiDAR Objects	Individual LiDAR Objects.
	Visual Objects	Individual Visual Objects.
	Audio-Visual Scene Descriptors	Of Scene to be augmented.
Augments	Audio-Visual Scene Descriptors	With the input Objects.
Produces	Audio-Visual Scene Descriptors	The augmented Audio-Visual Scene Descriptors.

2 Reference Model

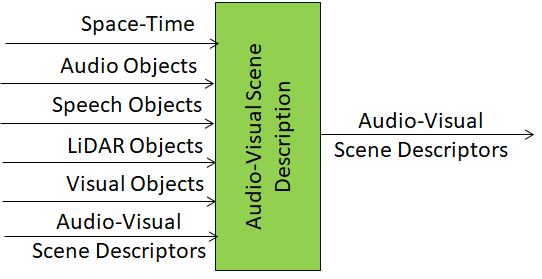

Figure 1 depicts the Reference Model of the Audio-Visual Scene Description (OSD‑MSD) AIM.

Audio-Visual Scene Description OSD-MSD AIM

Figure 1 – The Audio-Visual Scene Description (OSD‑MSD) AIM

3 I/O Data

Table 1 gives the Input and Output Data of the Audio-Visual Scene Description (OSD‑MSD) AIM.

Table 1 – I/O Data of the Audio-Visual Scene Description (OSD‑MSD) AIM

Input	Description
Space-Time	Space-Time information of output Audio-Visual Scene Descriptors.
Speech Object	Speech Object.
Audio Objects	Audio Objects.
LiDAR Objects	LiDAR Objects.
Visual Objects	Visual Objects.
Audio-Visual Scene Descriptors	The Audio-Visual Descriptors of the Scene part of the target Audio-Visual Scene.
Output	Description
Audio-Visual Scene Descriptors	The Audio-Visual Descriptors of the Scene.

4 SubAIMs

4.1 Reference Model

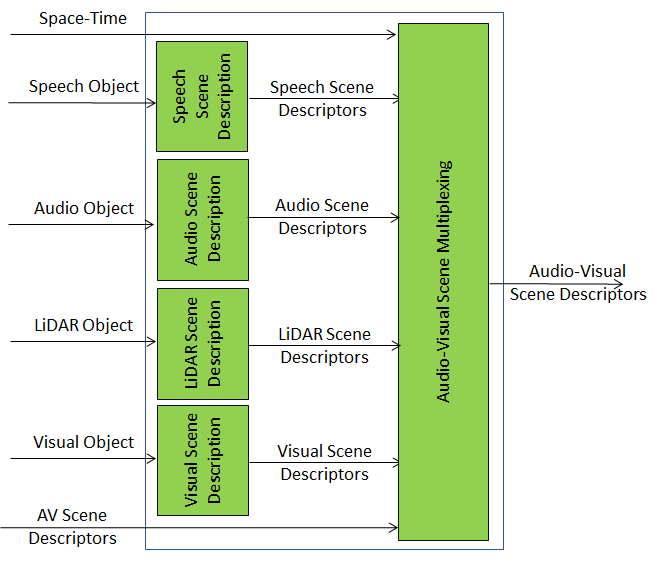

Figure 2 depicts the Reference Model of the Audio-Visual Scene Description (OSD‑MSD) Composite AIM.

Figure 2 – The Audio-Visual Scene Description (OSD‑MSD) Composite AIM

4.2 Operation

The OSD‑MSD AIM receives input media and Audio-Visual Scene Descriptors. It produces augmented Audio-Visual Scene Descriptors by processing each modality through its dedicated Scene Description SubAIM before aligning the outputs via Audio-Visual Alignment.

4.3 Functions of SubAIMs

Table 2 gives the functions of the Audio-Visual Scene Description (OSD‑MSD) SubAIMs.

Table 2 – Functions of the Audio-Visual Scene Description (OSD‑MSD) SubAIMs

SubAIM	Function
Speech Scene Description	Produces the Descriptors of a Scene composed of Speech Objects and Scenes.
Audio Scene Description	Produces the Descriptors of a Scene composed of Audio Objects and Scenes.
LiDAR Scene Description	Produces the Descriptors of a Scene composed of LiDAR Objects and Scenes.
Visual Scene Description	Produces the Descriptors of a Scene composed of Visual Objects and Scenes.
Audio-Visual Scene Multiplexing	Produces the Descriptors of the resulting Audio-Visual Scene.

4.4 I/O Data of SubAIMs

Table 3 gives the Input and Output Data of the Audio-Visual Scene Description (OSD‑MSD) SubAIMs.

Table 3 – I/O Data of the Audio-Visual Scene Description (OSD‑MSD) SubAIMs

SubAIM	Input	Output
Speech Scene Description	Space-Time Speech Object	Speech Scene Descriptors
Audio Scene Description	Space-Time Audio Object	Audio Scene Descriptors
LiDAR Scene Description	Space-Time LiDAR Object	LiDAR Scene Descriptors
Visual Scene Description	Space-Time Visual Object	Visual Scene Descriptors
Audio-Visual Scene Multiplexing	Speech Scene Descriptors Audio Scene Descriptors LiDAR Scene Descriptors Visual Scene Descriptors Audio-Visual Scene Descriptors	Audio-Visual Scene Descriptors

4.5 AIMs and JSON Metadata

Table 4 provides the links to the AIM specifications and JSON schemas. AIM1 indicates the Composite AIM and AIM2 its SubAIMs.

Table 4 – AIMs and JSON Metadata of the Audio-Visual Scene Description (OSD‑MSD)

AIM1	AIM2	Name	JSON
OSD‑MSD		Audio-Visual Scene Description	X
	OSD‑SSD	Speech Scene Description	X
	OSD‑ASD	Audio Scene Description	X
	OSD‑LSD	LiDAR Scene Description	X
	OSD‑VSD	Visual Scene Description	X
	OSD‑AVA	Audio-Visual Alignment	X

5 JSON Metadata

https://schemas.mpai.community/OSD/V1.5/AIMs/AudioVisualSceneDescription.json

6 Profiles

No Profiles.

7 Reference Software

7.1 Disclaimers

This OSD‑MSD Reference Software Implementation is released with the BSD-3-Clause licence.
The purpose of this OSD‑MSD Reference Software is to show a working Implementation of OSD‑MSD, not to provide a ready-to-use product.
MPAI disclaims the suitability of the Software for any other purposes and does not guarantee that it is secure.
Use of this Reference Software may require acceptance of licences from the respective repositories. Users shall verify that they have the right to use any third-party software required by this Reference Software.

7.2 Guide to the OSD‑MSD code

OSD‑MSD arranges the aligned visual and speech objects into Audio-Visual Scene Descriptors.

Use of this Reference Software for the OSD‑MSD AI Module is for developers who are familiar with Python, Docker, and RabbitMQ.

The OSD‑MSD Reference Software is found at the MPAI gitlab site. It contains:

src: a folder with the Python code implementing the AIM.
Dockerfile: a Docker file containing only the libraries required to build the Docker image and run the container.
requirements.txt: dependencies installed in the Docker image.

7.3 Acknowledgements

This OSD‑MSD Reference Software has been developed by the MPAI AI Framework Development Committee (AIF‑DC).

8 Conformance Testing

Table 5 provides the Conformance Testing Method for the Audio-Visual Scene Description (OSD‑MSD) Composite AIM. Conformance Testing of the individual SubAIMs is given by the individual AIM specifications.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 5 – Conformance Testing Method for the Audio-Visual Scene Description (OSD‑MSD) Composite AIM

Receives	Space-Time	Shall validate against Space-Time schema.
	Speech Objects	Shall validate against Speech Object schema. Speech Data shall conform with Qualifier.
	Audio Objects	Shall validate against Audio Object schema. Audio Data shall conform with Qualifier.
	LiDAR Objects	Shall validate against LiDAR Object schema. LiDAR Data shall conform with Qualifier.
	Visual Objects	Shall validate against Visual Object schema. Visual Data shall conform with Qualifier.
	Audio-Visual Scene Descriptors	Shall validate against Audio-Visual Scene Descriptors schema.
Produces	Audio-Visual Scene Descriptors	Shall validate against Audio-Visual Scene Descriptors schema.

9 Performance Assessment

Not part of this specification.

Go to MPAI-OSD V1.5 AI Modules
