1. Functions

The Operator Status Interpretation (XRV-OSI) AIM interprets the RE Operator Descriptors and VE Operator Descriptors to produce the RE and VE Operator Status  as required to determine if the Script’s Cue Point Conditions of the current Cue Point ID are met.

2. Reference Model

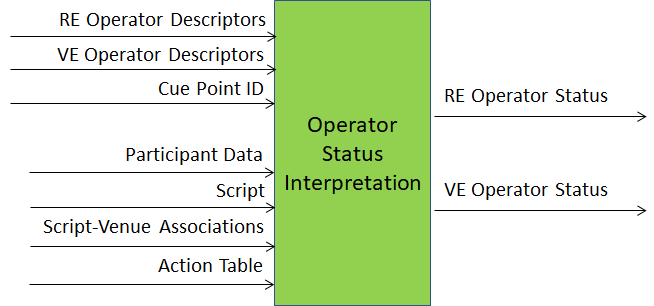

Figure 1 depicts the Operator Status Interpretation (XRV-OSI) AIM Reference Model.

Figure 1 – Operator Status Interpretation (XRV-OSI) AIM Reference Model

3. I/O Data

Table 1 specifies the Input/Output Data of the Operator Status Interpretation (XRV-OSI) AIM

Table 1 – Input/Output Data of Operator Status Interpretation (XRV-OSI) AIM

Input Data Description Port Number
RE Operator Descriptors (optional) RE Operator Descriptors include all elements necessary to interpret the Operator Commands in the Real Environment. Optional: a performance may have no operator console in the Real Environment. 1
VE Operator Descriptors (optional) VE Operator Descriptors include all elements necessary to interpret the Operator Commands in the Virtual Environment. Optional: a performance may have no operator console in the Virtual Environment. 1
Cue Point ID (optional) A string (Text Object): the Cue ID of the current Cue Point as determined by the Action Generation AIM. Optional: the operator’s Go reaches the Action Generation AIM through this AIM before there is a current Cue Point. 1
Participant Data (optional) Non-identifying information about each Participant loaded into the system and modified in real time. Optional: the User Agent may have no Participant Data, as for an audience with no history. 1
Script A machine-readable functional description of the entire show performance including actions to be performed in the Real and Virtual Environment based on the Performance, Operator, and Participant behaviours. 1
Action Table Commands required to achieve a desired Action in the Real and Virtual Environments per the Script. 1
Script-Venue Associations Metadata that associates measurable elements of the Script (e.g., characters, objects, participants, operator consoles) with data sources and sinks specific to the Real and Virtual Environments, as defined by the Qualifiers in the Venue Specifications. 1
Output Data Description Port Number
RE Operator Status The Operator Status inferred from the RE Operator Descriptors that are relevant to the current Cue Point ID. 1
VE Operator Status The Operator Status inferred from the VE Operator Descriptors that are relevant to the current Cue Point ID. 1

4. SubAIMs

No SubAIMs.

5. JSON Metadata

https://schemas.mpai.community/XRV1/V1.0/AIMs/OperatorStatusInterpretation.json

6. Profiles

No Profiles.

7. Reference Software

Under development.

8. Conformance Testing

Table 2 provides the Conformance Testing Method for the Operator Status Interpretation (XRV-OSI) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the Operator Status Interpretation (XRV-OSI) AIM

Receives RE Operator Descriptors Shall validate against RE Operator Descriptors schema.
VE Operator Descriptors Shall validate against VE Operator Descriptors schema.
Cue Point ID Shall validate against Basic Text Object schema. The string shall identify a Cue of the Script.
Participant Data Shall validate against Participant Data schema.
Script Shall validate against Script schema.
Action Table Shall validate against Action Table schema.
Script-Venue Associations Shall validate against Script-Venue Associations schema.
Produces RE Operator Status Shall validate against RE Operator Status schema.
VE Operator Status Shall validate against VE Operator Status schema.

9. Performance Assessment

Not part of this specification.
