1. Functions
The Performance Status Interpretation (XRV-PFI) produces the subset of the Performance Status relevant to the the current Cue Point Status.
2. Reference Model

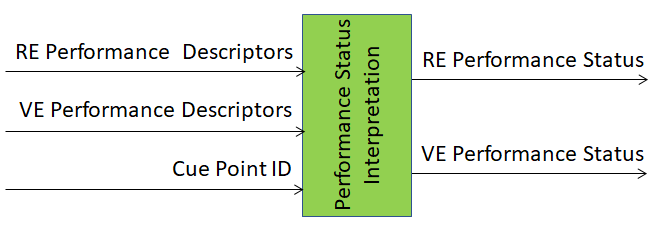

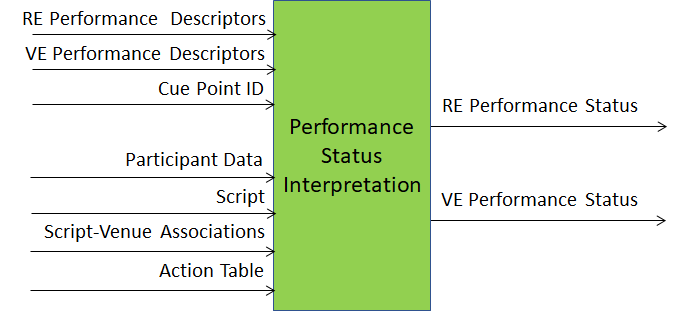

Figure 1 depicts the Reference Model of Performance Status Interpretation (XRV-PFI) AIM
Figure 1 – Performance Status Interpretation (XRV-PFI) AIM Reference Model
3. I/O Data
Table 1 specifies the Input and Output data of the XRV-PFI AIM.
Table 1 – Input and Output data of XRV-PFI AIM.
| Input Data | Description |
| Performance Descriptors | The Performance Descriptors |
| Cue Point Status | The current Cue Point. |
| Output Data | Description |
| Performance Status | The Performance Status inferred by the XRV-PFI AIM. |
