1. Functions

Virtual Environment Experience Generation (XRV-VEG) receives the VE Action IDs from the Action Generation AIM and outputs the appropriate commands from the Action Table via VE Data Out in accordance with the VE Venue Specifications and Script-Venue Associations, incorporating any required Show Descriptors.

2. Reference Model

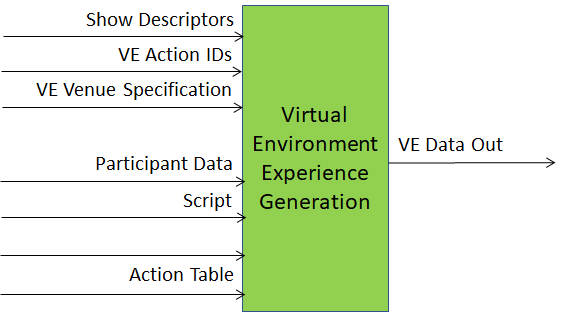

Figure 1 depicts the VE Experience Generation (XRV-VEG) AIM Reference Model.



Figure 1 – VE Experience Generation (XRV-VEG) AIM Reference Model

3. I/O Data

Table 1 specifies the Input/Output Data of the VE Experience Generation (XRV-VEG) AIM.

Table 1 – Input/Output Data of VE Experience Generation (XRV-VEG) AIM.

Input Data Description Port Number
Show Descriptors The collection of all RE and VE Descriptors as required by RE Experience Generation AIM. 1
VE Action IDs Strings (Text Objects) identifying the Actions required in the Virtual Environment as listed in the Action Table. 1
VE Venue Specification Specification of the VE Venue hosting the performance. 1
Participant Data (optional) Non-identifying information about each Participant loaded into the system and modified in real time. Optional: the User Agent may have no Participant Data, as for an audience with no history. 1
Script A machine-readable functional description of the entire show performance including actions to be performed in the Real and Virtual Environment based on the Performance, Operator, and Participant behaviours. 1
Action Table Commands required to achieve a desired Action in the Real and Virtual Environments per the Script. 1
Script-Venue Associations Metadata that associates measurable elements of the Script (e.g., characters, objects, participants, operator consoles) with data sources and sinks specific to the Real and Virtual Environments, as defined by the Qualifiers in the Venue Specifications. 1
Output Data Description Port Number
VE Data Out Data and commands that generate the user experience in the Virtual Environment per the VE Venue Specification and Script-Venue Associations. 1

4. SubAIMs

No SubAIMs.

5. JSON Metadata

https://schemas.mpai.community/XRV1/V1.0/AIMs/VEExperienceGeneration.json

6. Profiles

No Profiles.

7. Reference Software

Under development.

8. Conformance Testing

Table 2 provides the Conformance Testing Method for the VE Experience Generation (XRV-VEG) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the VE Experience Generation (XRV-VEG) AIM

Receives Show Descriptors Shall validate against Show Descriptors schema.
VE Action IDs Shall validate against Basic Text Object schema. The string shall identify an Action of the Action Table.
VE Venue Specification Shall validate against VE Venue Specification schema.
Participant Data Shall validate against Participant Data schema.
Script Shall validate against Script schema.
Action Table Shall validate against Action Table schema.
Script-Venue Associations Shall validate against Script-Venue Associations schema.
Produces VE Data Out Shall validate against VE Data Out schema.

9. Performance Assessment

Not part of this specification.
