1 Functions

The Audio Object Acquisition (CAE-AOA) AIM:

Receives User Command From the User: what to capture, or which stored Object to read.
Audio Data From a device, e.g., a microphone.
Basic Audio Object or Audio Object From a storage device.
Produces Basic Audio Object Captured from the device: the Audio Data with its Audio Qualifier.
Audio Object Read from storage, a Basic Audio Object or an Audio Object, as it is stored, and forwarded as appropriate.

Audio Object Acquisition captures audio at 48 kHz. A captured sound is a single sound: what it captures is a Basic Audio Object. It also reads stored Objects, Basic Audio Objects or Audio Objects, and forwards each as appropriate.

2 Reference Model

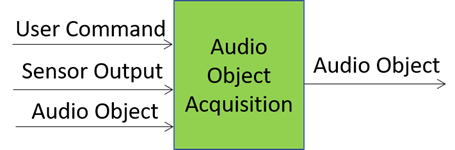

Figure 1 depicts the Reference Model of the Audio Object Acquisition (CAE-AOA) AIM.

Figure 1 – The Reference Model of the Audio Object Acquisition (CAE-AOA) AIM

3 I/O Data

Table 1 specifies the Input and Output Data of the Audio Object Acquisition (CAE-AOA) AIM.

Table 1 – I/O Data of the Audio Object Acquisition (CAE-AOA) AIM

Input Description
User Command Instruction directing the operation of the CAE-AOA AIM.
Audio Data Audio from a device, e.g., a microphone, captured at 48 kHz.
Basic Audio Object or Audio Object A stored Object to be read.
Output Description
Basic Audio Object or Audio Object The captured Basic Audio Object, or the Object read from storage, forwarded as appropriate.

4 SubAIMs

No SubAIMs.

5 JSON Metadata

https://schemas.mpai.community/CAE3/V1.0/AIMs/AudioObjectAcquisition.json

6 Profiles

No Profiles.

7 Reference Software

See Reference Software.

8 Conformance Testing

Table 2 provides the Conformance Testing Method for the Audio Object Acquisition (CAE-AOA) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the Audio Object Acquisition (CAE-AOA) AIM

Receives User Command Shall validate against the User Command schema.
Audio Data Shall conform with the Format stated by its Audio Qualifier.
Basic Audio Object or Audio Object Shall validate against the schema its Header names: Basic Audio Object or Audio Object.
Produces Basic Audio Object or Audio Object Shall validate against the schema its Header names: Basic Audio Object or Audio Object.

9 Performance Assessment

Not part of this specification.
