1 Functions

The Audio Object Delivery (CAE-AOD) AIM:

Receives User Command From the User.
Basic Audio Object or Audio Object The Object to play.
Basic Audio Scene Descriptors or Audio Scene Descriptors The Scene to play.
Produces Basic Audio Object What is played, delivered to a device, e.g., headphones or loudspeakers.

Audio Object Delivery plays:

  • a Basic Audio Object as it is or, when it states a User Point of View, heard from there, its Directional Patterns counting;
  • an Audio Object as a Scene of its Basic Audio Objects, heard from its User Point of View;
  • a Basic Audio Scene Descriptors or an Audio Scene Descriptors by Spatial Rendering from its User Point of View – each member from its own, if it has one: each source attenuated by distance and air, weighted by its Directional Patterns, and placed by direction, binaurally or on a loudspeaker layout.

2 Reference Model

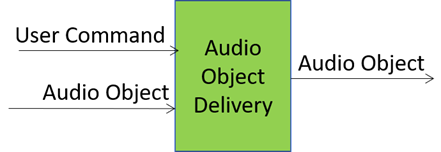

Figure 1 depicts the Reference Model of the Audio Object Delivery (CAE-AOD) AIM.

Figure 1 – The Reference Model of the Audio Object Delivery (CAE-AOD) AIM

3 I/O Data

Table 1 specifies the Input and Output Data of the Audio Object Delivery (CAE-AOD) AIM.

Table 1 – I/O Data of the Audio Object Delivery (CAE-AOD) AIM

Input Description
User Command Instruction directing the operation of the CAE-AOD AIM.
Basic Audio Object or Audio Object The Object to play.
Basic Audio Scene Descriptors or Audio Scene Descriptors The Scene to play.
Output Description
Basic Audio Object What is played, as a Basic Audio Object, also delivered to the device.

4 SubAIMs

No SubAIMs.

5 JSON Metadata

https://schemas.mpai.community/CAE3/V1.0/AIMs/AudioObjectDelivery.json

6 Profiles

No Profiles.

7 Reference Software

See Reference Software.

8 Conformance Testing

Table 2 provides the Conformance Testing Method for the Audio Object Delivery (CAE-AOD) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the Audio Object Delivery (CAE-AOD) AIM

Receives User Command Shall validate against the User Command schema.
Basic Audio Object or Audio Object Shall validate against the schema its Header names: Basic Audio Object or Audio Object.
Basic Audio Scene Descriptors or Audio Scene Descriptors Shall validate against the schema its Header names: Basic Audio Scene Descriptors or Audio Scene Descriptors.
Produces Basic Audio Object Shall validate against the Basic Audio Object schema.

9 Performance Assessment

Not part of this specification.
