1 Functions
Visual Scene Description (OSD-VSD) V1.3 produces the Descriptors of a Scene composed by Visual Objects and Scenes:
| Receives | Space-Time | of the input Objects having the same time base. |
| Visual Objects | Individual Visual Objects. | |
| Scene Descriptors | Scene the Objects belong to. | |
| Integrates | Space-Time and Visual Object | with Scene Descriptors. |
| Produces | Visual Scene Descriptors | Output#1 of AIM |
| Alert | Output#2 of AIM signalling potential anomalies in Object. |
2 Reference Model
The Reference Architecture is depicted in Figure 1.

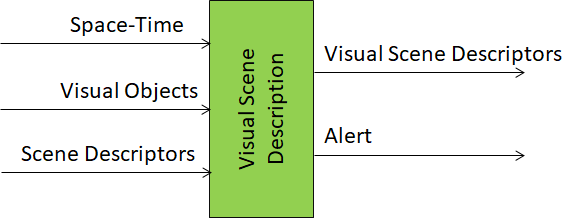

Figure 1 – The Visual Scene Description (OSD-VSD) AIM
3 Input/Output Data
Table 1 specifies the Input and Output Data of the Visual Scene Description (OSD-VSD) AIM. .
Table 1 – I/O Data of the Visual Scene Description (OSD-VSD) AIM
| Input | Description |
| Space-Time | Space-Time of input Objects. |
| Visual Objects | Input Visual Objects. |
| Scene Descriptors | Input Scene Descriptors. |
| Output | Description |
| Visual Scene Descriptors | The output Visual Scene Descriptors. |
| Alert | Data signalling potential anomalies in Object. |
4 SubAIMs
No SubAIMs.
5 JSON Metadata
https://schemas.mpai.community/OSD/V1.3/AIMs/VisualSceneDescription.json
6 Profiles
No profiles.
7 Reference Software
8 Conformance Testing
Table 2 provides the Conformance Testing Method for OSD-VSD AIM.
If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present and conform with the Qualifier, if present.
Table 2 – Conformance Testing Method for OSD-VSD AIM
| Receives | Space-Time | Shall validate against Space-Time schema. |
| Visual Objects | Shall validate against Visual Object schema. Media-specific Data shall conform with their Qualifiers. |
|
| Scene Descriptors | Shall validate against Scene Descriptors schema. | |
| Produces | Visual Scene Descriptors | Shall validate against Visual Scene Descriptors schema. |
| Alert | Shall validate against Alert schema. |
