1 Functions
The Multimodal Object Delivery (OSD‑MOD) AIM delivers Multimodal Objects and Multimodal Scenes: it plays a Multimodal Object and the Multimodal Scene Descriptors of a Multimodal Scene, each member from its own User Point of View if it has one, and passes what is played, as a Multimodal Object, to a transport or rendering device. It is the AIM that renders what Multimodal Scene Editing produces. Audio Object Delivery (CAE‑AOD) and Speech Object Delivery (MMC‑SOD) do the same for Audio and Speech Objects and Scenes.
| Receives | User Command | From the User. |
| Multimodal Object | The Object to play. | |
| Multimodal Scene Descriptors | The Scene to play. | |
| Produces | Multimodal Object | What is played, delivered to a transport or rendering device. |
2 Reference Model

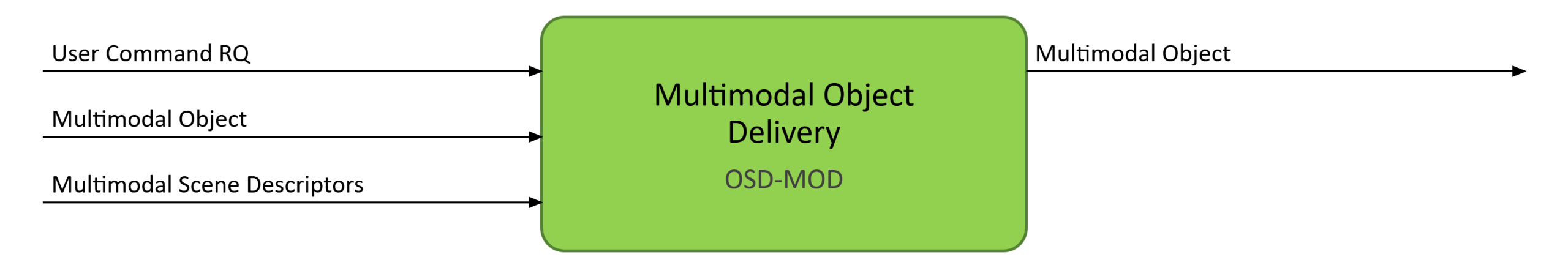

Figure 1 depicts the Reference Model of the Multimodal Object Delivery (OSD-MOD) AIM.
Figure 1 – Reference Model of the Multimodal Object Delivery (OSD-MOD) AIM
3 I/O Data
Table 1 specifies the Input and Output Data of the Multimodal Object Delivery (OSD-MOD) AIM. Links are to the Data Type specifications and to their JSON schemas.
| Input | Data Type | Description |
|---|---|---|
| User Command | User Command (CAE-UCM) RQ (optional) | Instruction directing the operation of the OSD‑MOD AIM. |
| Multimodal Object | Multimodal Object (OSD-MMO) (optional) | The Object to play. |
| Multimodal Scene Descriptors | Multimodal Scene Descriptors (OSD-MSD) (optional) | The Scene to play. |
| Output | Data Type | Description |
| Multimodal Object | Multimodal Object (OSD-MMO) | What is played, delivered to a transport or rendering device. |
4 SubAIMs
No SubAIMs.
5 JSON Metadata
https://schemas.mpai.community/OSD/V1.5/AIMs/MultimodalObjectDelivery.json
6 Profiles
No Profiles.
7 Reference Software
Not part of this specification.
8 Conformance Testing
Table 2 provides the Conformance Testing Method for the OSD-MOD AIM.
If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.
| Receives | User Command | Shall validate against the User Command schema. |
| Multimodal Object | Shall validate against the Multimodal Object schema. | |
| Multimodal Scene Descriptors | Shall validate against the Multimodal Scene Descriptors schema. | |
| Produces | Multimodal Object | Shall validate against the Multimodal Object schema. |
9 Performance Assessment
Not part of this specification.
