1. Functions

The Participant Status Interpretation (XRV-PTI) interprets the RE Participant Descriptors and VE Participant Descriptors to produce the RE and VE Participant Status as required to determine if the Script’s Cue Point Conditions of the current Cue Point ID are met.

2. Reference Model

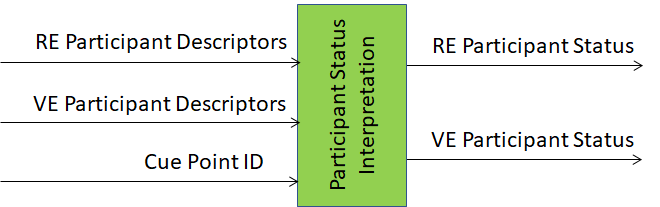

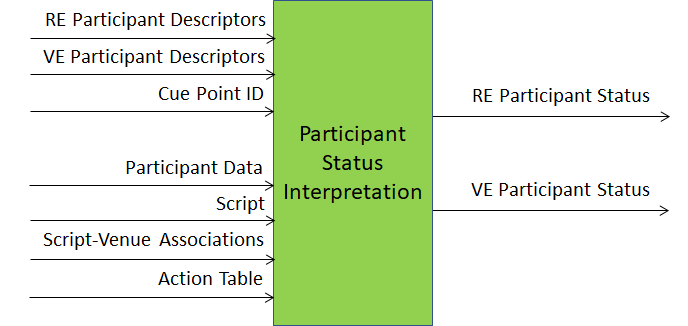

Figure 1 depicts the Reference Model of Participant Status Interpretation (XRV-PTI) AIM

Figure 1 – Participant Status Interpretation (XRV-PTI) AIM Reference Model

3. I/O Data

Table 1 specifies the Input and Output data of the XRV-PTI AIM.

Table 1 – Input and Output data of XRV-PTI AIM

Input Data Description Port Number
RE Participant Descriptors (optional) RE Participant Descriptors include all elements necessary to interpret the status of Participants in the Real Environment. Optional: a performance may have no Participant in the Real Environment. 1
VE Participant Descriptors (optional) VE Participant Descriptors include all elements necessary to interpret the status of Participants in the Virtual Environment. Optional: a performance may have no Participant in the Virtual Environment. 1
Cue Point ID A string (Text Object): the Cue ID of the current Cue Point as determined by the Action Generation AIM. 1
Participant Data (optional) Non-identifying information about each Participant loaded into the system and modified in real time. Optional: the User Agent may have no Participant Data, as for an audience with no history. 1
Script A machine-readable functional description of the entire show performance including actions to be performed in the Real and Virtual Environment based on the Performance, Operator, and Participant behaviours. 1
Action Table Commands required to achieve a desired Action in the Real and Virtual Environments per the Script. 1
Script-Venue Associations Metadata that associates measurable elements of the Script (e.g., characters, objects, participants, operator consoles) with data sources and sinks specific to the Real and Virtual Environments, as defined by the Qualifiers in the Venue Specifications. 1
Output Data Description Port Number
RE Participant Status The Participant Status inferred from the RE Participant Descriptors that are relevant to the current Cue Point ID. 1
VE Participant Status The Participant Status inferred from the VE Participant Descriptors that are relevant to the current Cue Point ID. 1

4. SubAIMs

No SubAIMs.

5. JSON Metadata

https://schemas.mpai.community/XRV1/V1.0/AIMs/ParticipantStatusInterpretation.json

6. Profiles

No Profiles.

7. Reference Software

Under development.

8. Conformance Testing

Table 2 provides the Conformance Testing Method for the Participant Status Interpretation (XRV-PTI) AIM.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 2 – Conformance Testing Method for the Participant Status Interpretation (XRV-PTI) AIM

Receives RE Participant Descriptors Shall validate against RE Participant Descriptors schema.
VE Participant Descriptors Shall validate against VE Participant Descriptors schema.
Cue Point ID Shall validate against Basic Text Object schema. The string shall identify a Cue of the Script.
Participant Data Shall validate against Participant Data schema.
Script Shall validate against Script schema.
Action Table Shall validate against Action Table schema.
Script-Venue Associations Shall validate against Script-Venue Associations schema.
Produces RE Participant Status Shall validate against RE Participant Status schema.
VE Participant Status Shall validate against VE Participant Status schema.

9. Performance Assessment

Not part of this specification.
