1      Functions

The Human‑CAV Interaction (MMC‑HCI) AIM recognises the human owner or renter, responds to humans’ commands and queries, converses with humans, manifests itself as a perceptible entity, exchanges information with the Autonomous Motion Subsystem in response to humans’ requests, and communicates with HCIs on board other CAVs.

Receives Point of View User’s Point of View looking at environment.
Audio‑Visual Scene Descriptors Audio‑Visual representation of the environment.
Audio Object From environment.
Text Object From User.
Visual Object From environment.
AMS‑HCI Message AMS response to HCI request.
Ego‑Remote HCI Message Remote HCI to Ego HCI message.
Produces Text Object HCI’s Text.
Speech Object HCI’s avatar Speech.
Audio Object HCI’s avatar or FED Audio.
Visual Object HCI’s avatar or FED Visual.
AMS‑HCI Message HCI request to AMS, e.g., Route or Point of View.
Ego‑Remote HCI Message Ego HCI to Remote HCI message.

2      Reference Model

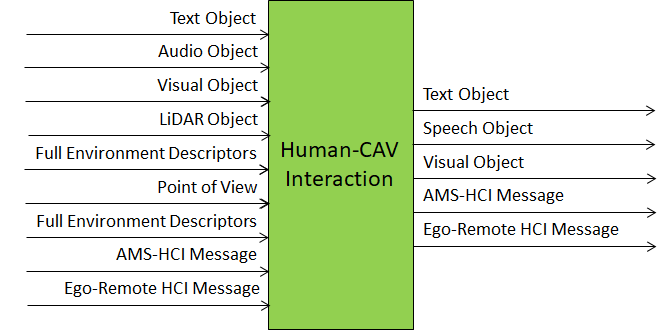

Figure 1 depicts the Reference Model of the Human‑CAV Interaction (MMC‑HCI) AIM.

Human-CAV Interaction MMC-HCI AIM

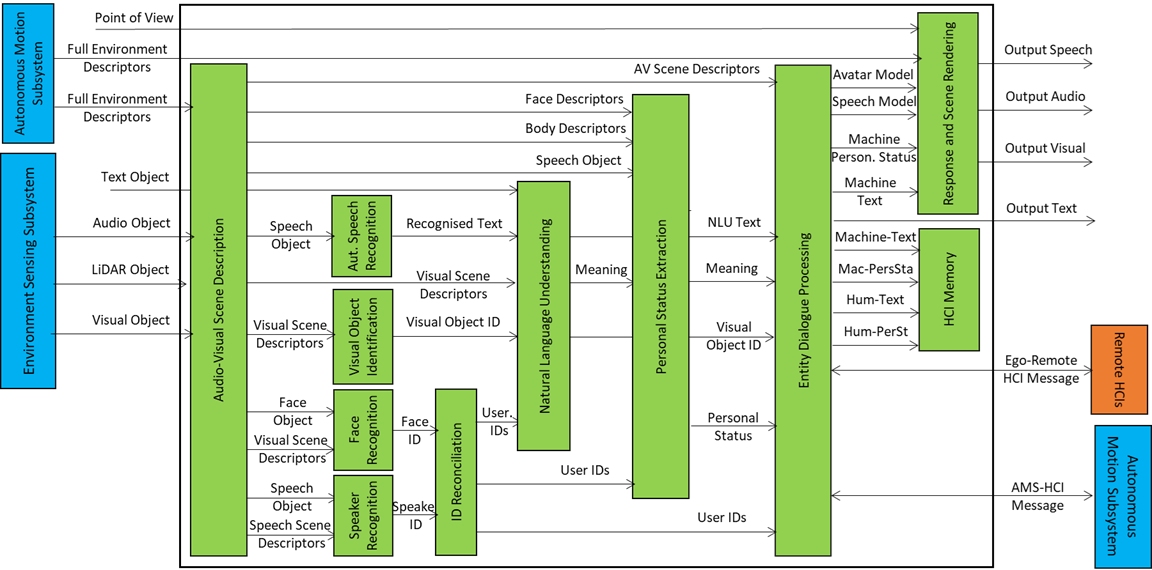

Figure 1 – The Human‑CAV Interaction (MMC‑HCI) AIM

3      I/O Data

Table 1 specifies the Input and Output Data of the Human‑CAV Interaction (MMC‑HCI) AIM.

Table 1 – I/O Data of the Human‑CAV Interaction (MMC‑HCI) AIM

Input Description
Point of View Passenger’s Point of View looking at environment.
Audio‑Visual Scene Descriptors Audio‑Visual representation of the environment.
Audio Object User authentication, command/interaction with HCI, and environment audio.
Text Object Text complementing/replacing User input.
Visual Object Environment perception, User authentication, command/interaction with HCI, and environment visual.
AMS‑HCI Message AMS response to HCI request.
Ego‑Remote HCI Message Remote HCI to Ego HCI.
Output Description
Text Object HCI’s output Text.
Speech Object HCI’s avatar Speech.
Audio Object HCI’s avatar or FED Audio.
Visual Object HCI’s avatar or FED Visual.
AMS‑HCI Message HCI request to AMS, e.g., Route or Point of View.
Ego‑Remote HCI Message Ego HCI to Remote HCI.

4      SubAIMs

4.1 Functions of SubAIMs

Table 2 gives the functions of the Human‑CAV Interaction (MMC‑HCI) SubAIMs.

Table 2 – Functions of the Human‑CAV Interaction (MMC‑HCI) SubAIMs

SubAIM Function
Audio‑Visual Scene Description Receives Audio and Visual Objects from the appropriate devices and produces Audio‑Visual Scene Descriptors.
Automatic Speech Recognition Receives Speech Objects and produces Recognised Text.
Visual Object Identification Receives Visual Scene Descriptors and provides Instance ID of indicated Visual Object.
Natural Language Understanding Receives Recognised Text, uses context information (e.g., Instance ID of object), and produces Natural Language Understanding Text and Meaning.
Speaker Identity Recognition Receives Speech Object of a human and Speech Scene Geometry and produces Speaker ID.
Personal Status Extraction Receives Speech Object, Meaning, Face Descriptors and Body Descriptors of a human with a Participant ID and produces the human’s Personal Status.
Face Identity Recognition Receives Face Object of a human and Visual Scene Geometry and produces Face ID.
Entity Dialogue Processing Receives Speaker ID, Face ID, AV Scene Descriptors, Meaning, Natural Language Understanding Text, Visual Object ID, and Personal Status, as well as AMS‑HCI Messages and Ego‑Remote HCI Messages. Produces Machine Text Object and Personal Status, as well as AMS‑HCI Messages and Ego‑Remote HCI Messages.
Personal Status Display Receives Machine Text Object and Machine Personal Status and produces Machine’s Portable Avatar.
Response and Scene Rendering Receives AV Scene Descriptors, Portable Avatar, and Point of View and produces Output Speech, Output Audio, and Output Visual.

4.2 Operation

The operation of the HCI subsystem is described by the following scenario where a group of humans is approaching the CAV outside or is sitting inside the CAV:

  1. Audio‑Visual Scene Description (OSD‑AVS) produces:
    1. Speech Scene Descriptors in the form of Speech Objects corresponding to each speaking human in the environment.
    2. Visual Scene Descriptors in the form of Descriptors of Faces and Bodies.
    3. All non‑Speech Objects are removed from the Speech Scene or signalled in the Audio Scene.
  2. Automatic Speech Recognition (MMC‑ASR) recognises the speech of each human and produces Recognised Text supporting multiple Speech Objects as input properly identified by their Spatial Attitudes.
  3. Visual Object Identification (OSD‑VOI) produces Instance IDs of Visual Objects indicated by humans.
  4. Natural Language Understanding (MMC‑NLU) produces Refined Text and extracts Meaning from the Recognised Text of each input Speech using the spatial information of Visual Object Identifiers.
  5. Speaker Identity Recognition (MMC‑SIR) and Face Identity Recognition (PAF‑FIR) identify the humans the HCI is interacting with. If FIR provides Face IDs corresponding to the Speaker IDs, Entity Dialogue Processing can correctly associate the Speaker IDs with the Face IDs.
  6. Personal Status Extraction (MMC‑PSE) extracts the Personal Status of the humans.
  7. Entity Dialogue Processing (MMC‑EDP):
    1. Communicates with the Autonomous Motion Subsystem of the Ego CAV to request to move the CAV to a destination, view the Full Environment Descriptors, be informed about the CAV’s situation, or receive relevant information for passengers.
    2. Communicates with Remote CAVs to exchange Environment Descriptors.
    3. Produces the Machine Text and Machine Personal Status.
  8. Personal Status Display (PAF‑PSD) produces the Machine Portable Avatar conveying Machine Speech, Machine Personal Status, and any other relevant information for the Audio‑Visual Rendering AIM.
  9. Response and Scene Rendering (PAF‑AVR) renders Audio and Visual information using the Machine Portable Avatar or the Autonomous Motion Subsystem’s Full Environment Descriptors based on the Point of View provided by the human.
  10. Entity Dialogue Processing (MMC‑EDP) also:
    1. Requests the AMS to provide candidate Routes in response to a human requesting to be taken to a destination.
    2. Processes responses from AMS and converts them to multimodal messages understandable by the human.
    3. Processes messages from Ego AMS or Remote HCI and converts them to multimodal messages understandable by the human.

The HCI interacts with the humans in the cabin in several ways:

  1. By responding to commands/queries from one or more humans at the same time, e.g.:
    1. Commands to go to a waypoint, park at a place, etc.
    2. Commands with an effect in the cabin, e.g., turn off air conditioning, turn on the radio, call a person, open window or door, search for information.
  2. By conversing with and responding to questions from one or more humans at the same time about travel‑related issues, e.g.:
    1. Humans request information, e.g., time to destination, route conditions, weather at destination.
    2. CAV offers alternatives to humans, e.g., long but safe way, short but likely to have interruptions.
    3. Humans ask questions about objects in the cabin.
  3. By following the conversation on travel matters held by humans in the cabin if:
    1. The passengers allow the HCI to do so, and
    2. The processing is carried out inside the CAV.

4.3 I/O Data of SubAIMs

Table 3 gives the Input and Output Data of the Human‑CAV Interaction (MMC‑HCI) SubAIMs.

Table 3 – I/O Data of the Human‑CAV Interaction (MMC‑HCI) SubAIMs

SubAIM Input Output
Audio‑Visual Scene Description Audio Object
Visual Object		 AV Scene Descriptors
Automatic Speech Recognition Speech Object Recognised Text
Visual Object Identification AV Scene Descriptors
Visual Objects		 Visual Object Instance ID
Natural Language Understanding Recognised Text
AV Scene Descriptors
Visual Object Instance ID
Input Text		 NLU Text
Meaning
Speaker Identity Recognition Speech Object
Speech Scene Geometry		 Speaker ID
Personal Status Extraction Meaning
Speech Object
Face Descriptors
Body Descriptors		 Personal Status
Face Identity Recognition Face Object
Visual Scene Geometry		 Face ID
Entity Dialogue Processing Ego‑Remote HCI Message
AMS‑HCI Message
Speaker ID
Meaning
NLU Text
Visual Object Instance ID
Personal Status
Face ID		 Ego‑Remote HCI Message
AMS‑HCI Message
Machine Text
Machine Personal Status
Personal Status Display Machine Personal Status
Machine Text		 Machine Portable Avatar
Response and Scene Rendering AV Scene Descriptors
Machine Portable Avatar
Point of View		 Output Text
Output Speech
Output Audio
Output Visual

4.4 AIMs and JSON Metadata

Table 4 provides the links to the AIM specifications and JSON schemas. AIM1 indicates the Composite AIM and AIM2 its SubAIMs.

Table 4 – AIMs and JSON Metadata of the Human‑CAV Interaction (MMC‑HCI)

AIM1 AIM2 Name JSON
MMC‑HCI Human‑CAV Interaction X
OSD‑AVS Audio‑Visual Scene Description X
MMC‑ASR Automatic Speech Recognition X
OSD‑AVA Audio‑Visual Alignment X
OSD‑VOI Visual Object Identification X
MMC‑NLU Natural Language Understanding X
MMC‑SIR Speaker Identity Recognition X
MMC‑PSE Personal Status Extraction X
MMC‑EDP Entity Dialogue Processing X
PAF‑FIR Face Identity Recognition X
PAF‑PSD Personal Status Display X
PAF‑AVR Response and Scene Rendering X

5      JSON Metadata

https://schemas.mpai.community/MMC/V2.5/AIMs/HumanCAVInteraction.json

6      Profiles

No Profiles.

7      Reference Software

Not part of this specification.

8      Conformance Testing

Table 5 provides the Conformance Testing Method for the Human‑CAV Interaction (MMC‑HCI) Composite AIM. Conformance Testing of the individual SubAIMs is given by the individual AIM specifications.

If a schema contains references to other schemas, conformance of data for the primary schema implies that any data referencing a secondary schema shall also validate against the relevant schema, if present, and conform with the Qualifier, if present.

Table 5 – Conformance Testing Method for the Human‑CAV Interaction (MMC‑HCI) Composite AIM

Receives Point of View Shall validate against Point of View schema.
Audio‑Visual Scene Descriptors Shall validate against Audio‑Visual Scene Descriptors schema.
Audio Object Shall validate against Audio Object schema. Audio Data shall conform with Audio Qualifier.
Text Object Shall validate against Text Object schema.
Visual Object Shall validate against Visual Object schema. Visual Data shall conform with Visual Qualifier.
AMS‑HCI Message Shall validate against AMS‑HCI Message schema.
Ego‑Remote HCI Message Shall validate against Ego‑Remote HCI Message schema.
Produces Text Object Shall validate against Text Object schema.
Speech Object Shall validate against Speech Object schema.
Audio Object Shall validate against Audio Object schema. Audio Data shall conform with Audio Qualifier.
Visual Object Shall validate against Visual Object schema. Visual Data shall conform with Visual Qualifier.
AMS‑HCI Message Shall validate against AMS‑HCI Message schema.
Ego‑Remote HCI Message Shall validate against Ego‑Remote HCI Message schema.

9      Performance Assessment

Not part of this specification.
